Primary image of TremLock® Narrow Batten I and II

TremLock® Narrow Batten I and II

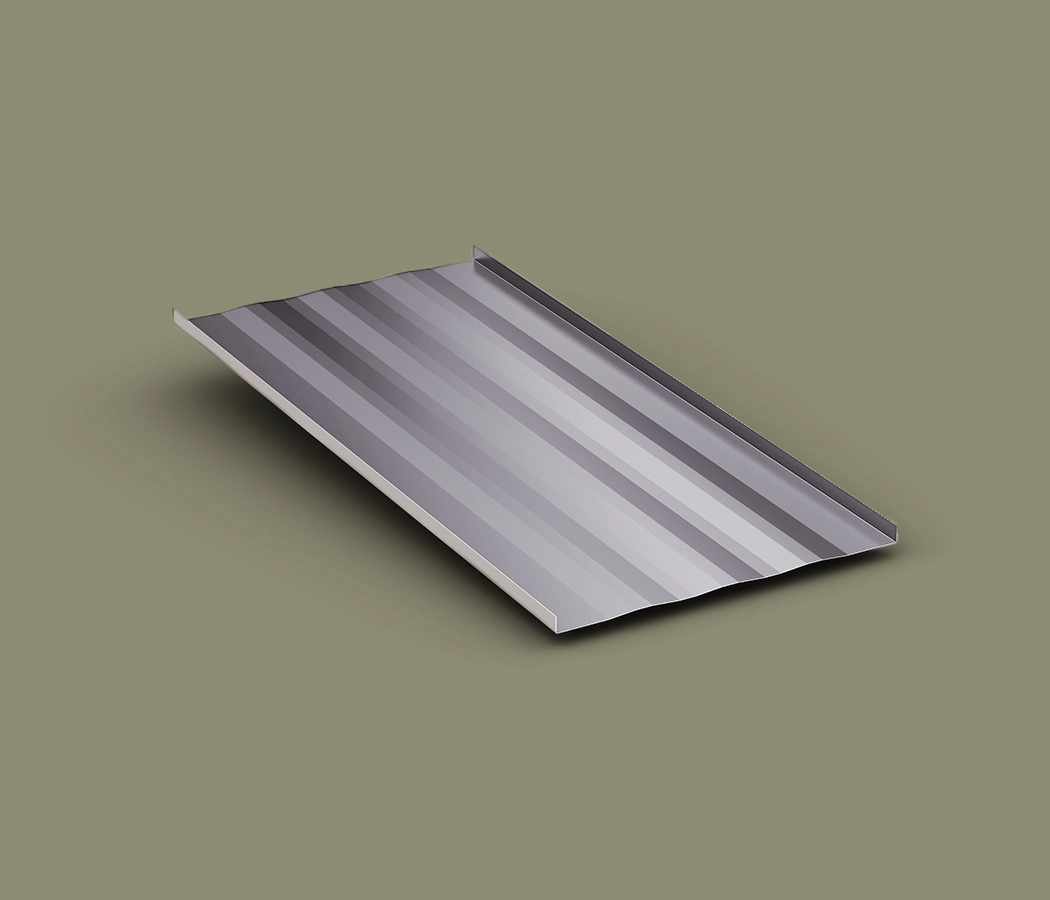

TremLock® Narrow Batten roof panels are a snap-on batten architectural standing seam roof system used for curved applications. There are two versions: Narrow Batten I and Narrow Batten II. TremLock Narrow Batten I can be curved to a minimum 30" radius while Narrow Batten II can also be used over a 22-gauge metal deck or 5/8" wood materials with a minimum slope of 3:12.

Composed of factory roll formed material from 24 or 22 gauge Galvalume® steel, TremLock Narrow Batten panels are coated on both sides with a layer of 55% aluminum-zinc alloy using the hot dip process per ASTM specification A792/A792M. Panels are joined by a snap-on batten and held in place by concealed clips.

Recommended for:

New Construction

Restoration

Download Product Data Sheet Find a Rep

Benefits of Using TremLock® Narrow Batten I and II on Your Next Project

Technical Resources for TremLock® Narrow Batten I and II

Download any of these featured resources or find a specific type of document below.

LEED Products List

US and Canadian Data Sheet

TremLock Metal Roof, Wall Panels, and Flat Stock Color Selector

See All Roofing Product Resources

Related Services & Assessments

We offer a comprehensive range of roofing services and assessments to help customers maintain the integrity and longevity of their roofs.

Need help finding the right product or a service?

Talk to a Tremco
Representative Today

Find a Rep

Frequently Asked Questions

Your Tremco Roofing field advisor will be glad to provide you with references.

TremLock ® Narrow Batten roof panels are factory roll-formed and manufactured from 24 or 22 gauge Galvalume®, coated on both sides with a layer of 55% aluminum-zinc alloy. Panels are joined by a snap-on batten and held in place by concealed clips. There are two versions: Narrow Batten I and Narrow Batten II. TremLock Narrow Batten I can be curved to a minimum 30" radius: Narrow Batten II can also be used over a 22-gauge metal deck or 5/8" wood materials with a minimum slope of 3:12.

All Tremco Roofing products are available through Tremco and our highly trained field advisors. A number of factors affect price, so please discuss details with your field advisor.

Tremco Roofing works exclusively with professional roofing contactors who are experts at minimizing disruption at our customers’ facilities.

Your Choice of Protection, Under One Roof

Have peace of mind with a TremCare preventive maintenance program to help extend the lifecycles of your roofs and facilities.

Discover TremCare

TremLock® Narrow Batten I and II
